Commercial & Industrial Energy Storage

Smarter energy.
Built around your site.

A turnkey 125kW / 261kWh liquid-cooled BESS engineered for peak shaving, solar self-consumption, backup power and microgrids.

Get a project solution → Compare structures ↓

261.248kWh rated energy

125kW rated power

<20ms switching*

125kW 261kWh liquid-cooled battery energy storage cabinet

Liquid cooling IP55 outdoor

TWO CABINET ARCHITECTURES

Same performance.
Choose your structure.

Two integrated layouts help match the cabinet footprint, transportation plan and on-site installation requirements of your project.

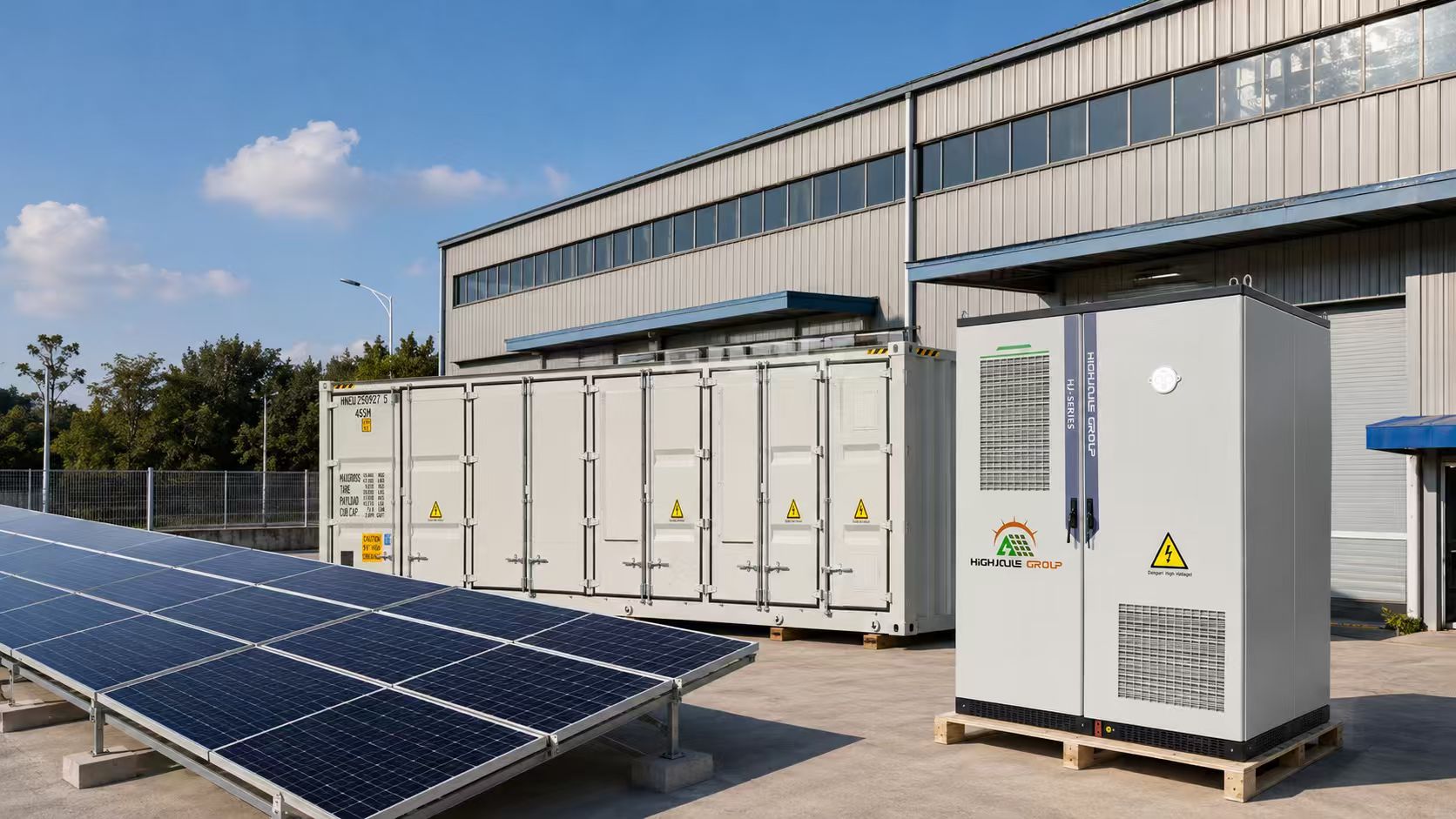

Side-by-side energy storage cabinet installed with solar panels

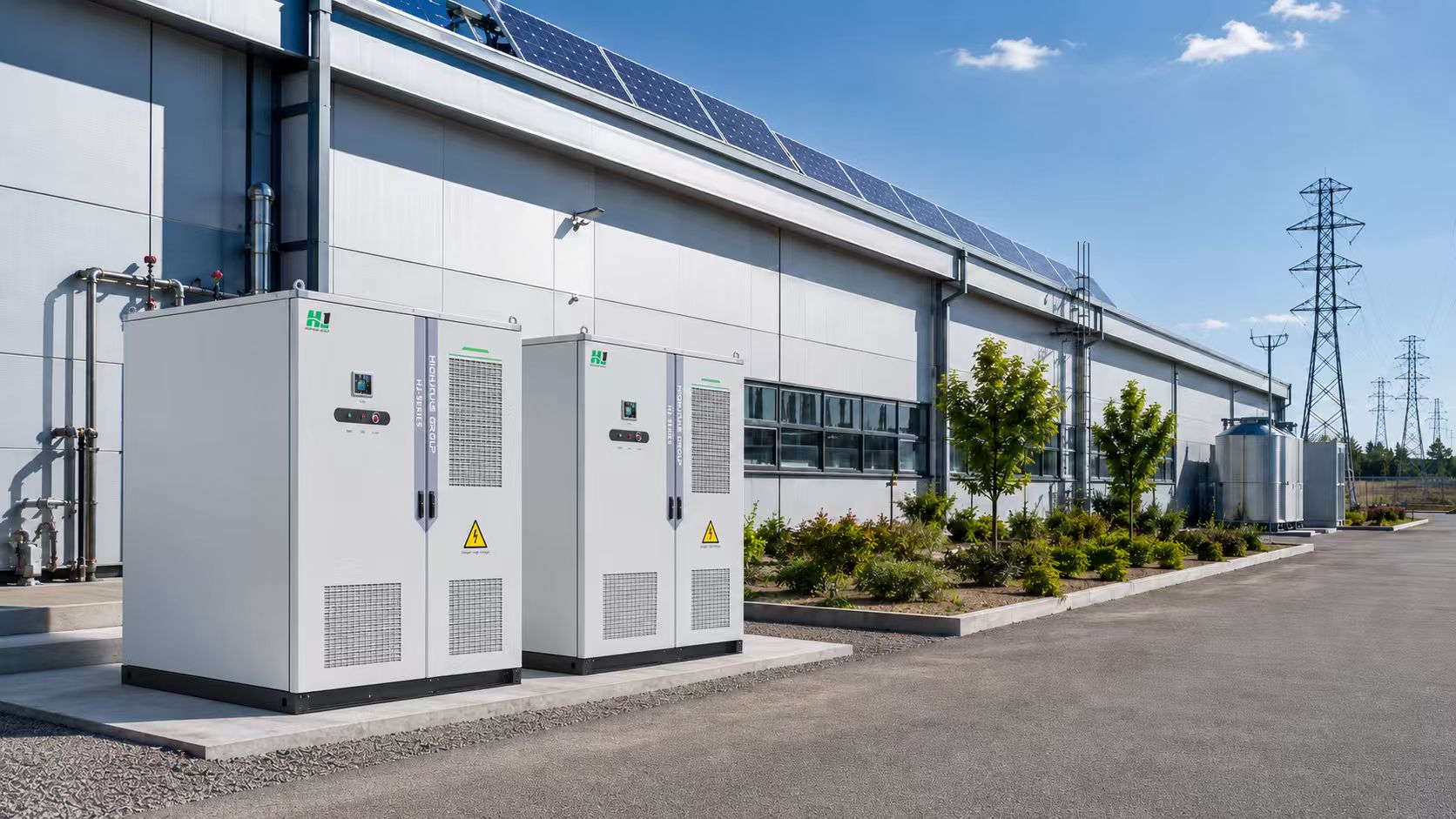

Side-by-side energy storage cabinets at an industrial facility

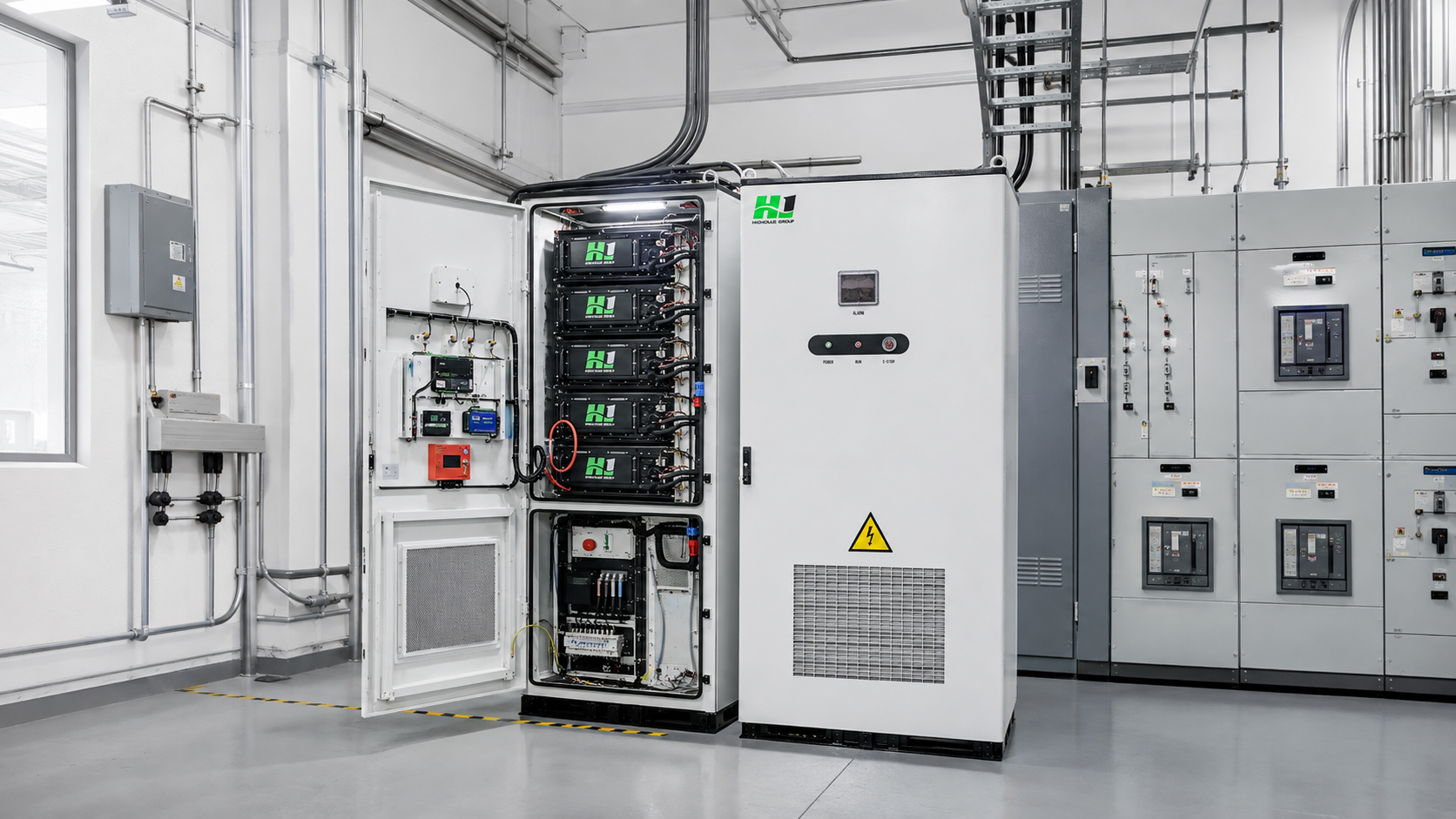

Open side-by-side energy storage cabinet showing battery modules

1 / 3

WIDE CABINET

Side-by-Side Structure

✓

Battery and electrical compartments are arranged side by side for clear physical separation and convenient maintenance access.

Dimensions: 1800 × 1472 × 2300 mm
Weight: Approx. 3.36 t
Model: HJ-H0125-0261L

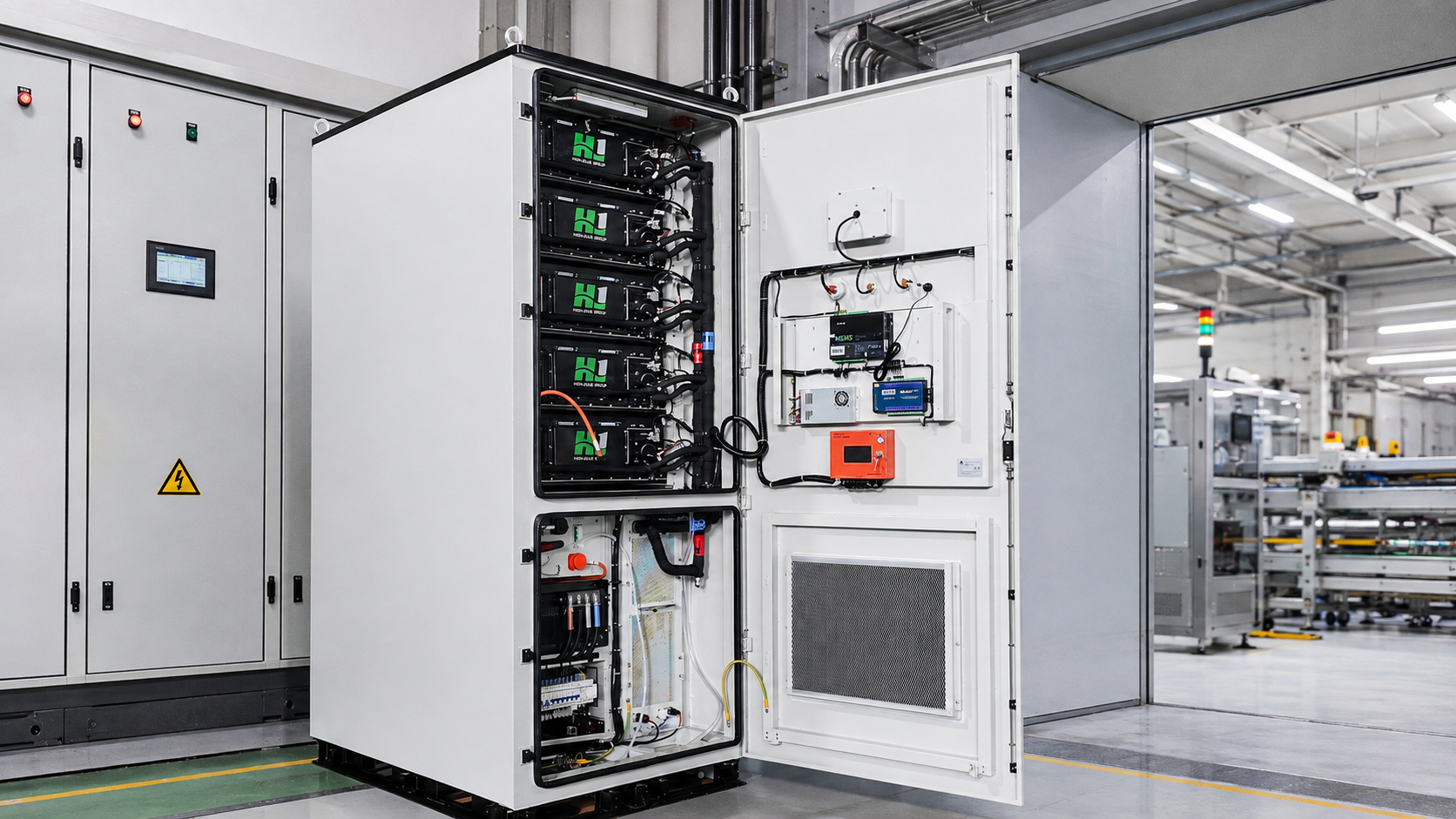

Open top-and-bottom energy storage cabinet in production facility

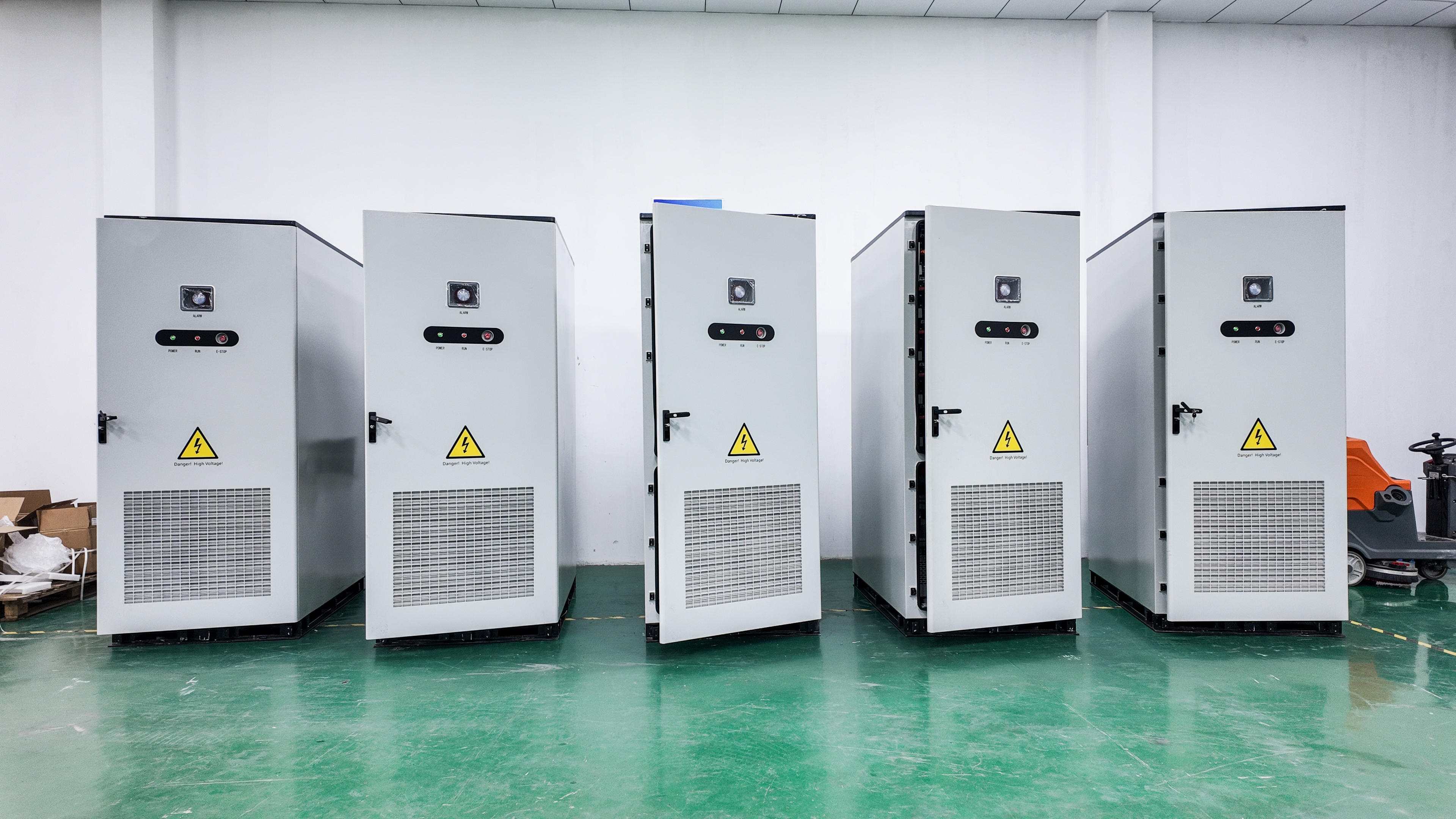

Top-and-bottom energy storage cabinets in factory

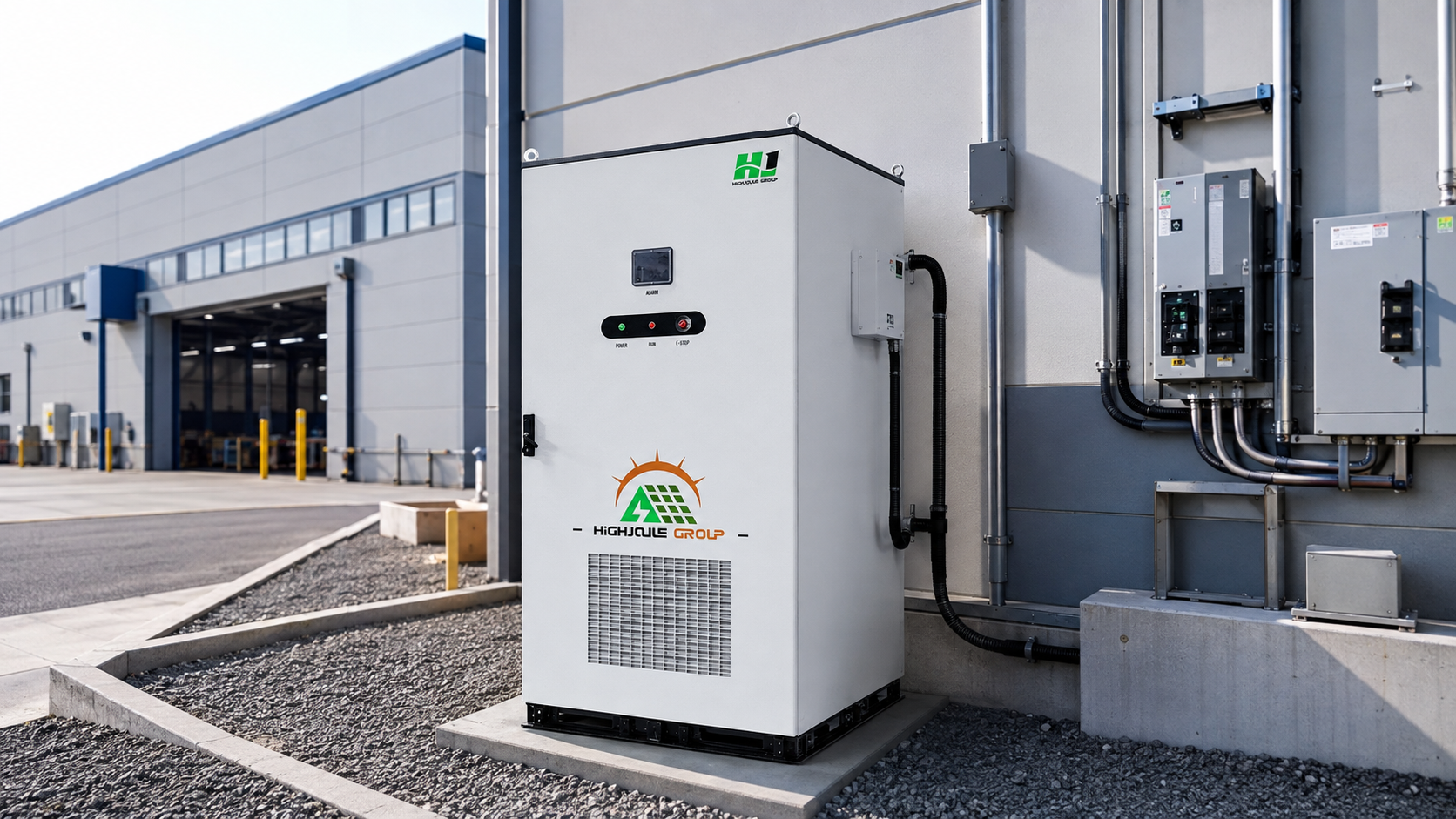

Top-and-bottom energy storage cabinet installed outdoors

1 / 3

SLIM CABINET

Top-and-Bottom Structure

✓

A compact vertical arrangement reduces cabinet width, ideal where the available installation frontage is limited.

Dimensions: 990 × 1485 × 2385 mm
Weight: Approx. 2.13 t
Model: HJ-G0125-0261L

ENGINEERED FOR REAL-WORLD ENERGY

One cabinet.
Multiple value streams.

A factory-integrated system with battery, PCS, BMS, EMS, thermal management and cabinet-level fire protection.

Peak shaving

Reduce demand peaks and optimize time-of-use electricity costs.

Solar + storage

Increase renewable self-consumption and reduce curtailed energy.

Resilient backup

Support critical loads through grid interruptions with fast switching.

Smart microgrids

Coordinate solar, grid, loads and EV charging through intelligent EMS.

CORE SPECIFICATIONS

Powerful inside.
Ready outside.

Built with 314Ah LFP cells and liquid cooling for commercial and industrial projects across demanding climates.

Rated energy261.248 kWh

Rated output125 kW

Battery configuration1P260S

DC voltage range672–864 V

Operating temperature−30°C to +55°C

Protection ratingIP55

CommunicationModbus · MQTT · CAN

Grid frequency50 / 60 Hz

GET YOUR PROJECT PLAN

Tell us about
your energy needs.

Complete the required details. Your project summary will be prepared automatically and opened in WhatsApp for a direct conversation with our energy storage engineer.

1 Complete project details →2 Open WhatsApp →3 Get a tailored solution
